CuteHotspot. Wi-Fi Hotspot Software

Documentation

Step-by-step Wireless Billing Setup

Requirements

1. A computer connected to the Internet with 2 LAN adapters.

If you use a laptop, you can connect it to the Internet via a Wi-Fi adapter (LAN card #1) and have a spare Ethernet LAN card (LAN card #2).

2. An extra Wi-Fi router, not connected to your network.

The idea is that you share the Internet via your server computer from LAN card #1 to LAN card #2 and Wi-Fi router.

Open main menu > Setup > Wi-Fi setup wizard, which should help you setup the correct network topology:

Full sized image

Follow these key setup steps:

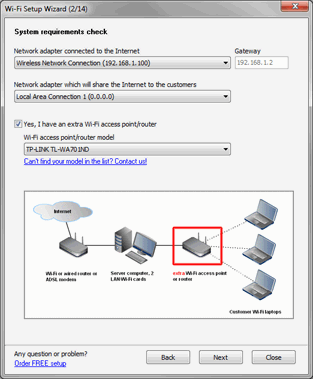

Select LAN cards and router model

Select a LAN card which connects the computer to the Internet, a LAN card shared to your customers and your Wi-Fi router model.

Full sized image

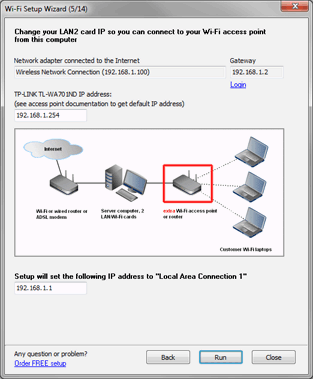

Adjust LAN card #2 IP address

Reset your router to the default settings. Adjust LAN card #2 IP address so you can connect to your Wi-Fi router from the server computer.

Full sized image

Connect Wi-Fi router to LAN card #2

Connect LAN card #2 with Ethernet cable to your Wi-Fi router LAN (not WAN/Internet!) port.

Full sized image

Switch Wi-Fi router to the access point mode

Depending on your router model switch it to the access point mode or if there is no such an option, disable router DHCP.

Full sized image

Enable Internet Connection Sharing between card #1 and #2

Select a LAN card which connects the computer to the Internet, LAN card shared to your customers and your Wi-Fi router model.

If for some reason Internet Connection Sharing is not OK for you, you could try some other alternative Windows routing software. We recommend using NAT32 since many our clients use it and it proves to work well with our program.

Full sized image

Connect Wi-Fi laptop and get the login page

Connect a Wi-Fi laptop to your router and try opening any website. You should get the login page. Type your customer/ticket login/password to log in. Try login/password = test/test by default.

Full sized image
