Step-by-step Wireless Billing Setup

on Windows 7

Introduction

This article demonstrates how to setup a very simple Wi-Fi billing approach. You need the following hardware:

1. A server computer which is connected to the Internet (e.g. via ADSL modem).

2. An extra LAN (Ethernet) card.

3. Wireless router (Linksys WRT54G, D-Link DIR-300, etc.)

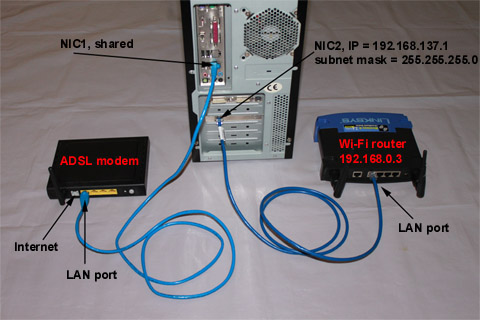

The idea is to make your server computer your Internet gateway computer, which means the computer with CuteHotspot Server installed is located between your ADSL router and Wi-Fi router:

Click for full sized image
Full sized image

1. Plug in extra Ethernet card

Plug in your extra Ethernet card into your server PCI slot and let Windows detects the card and install the corresponding network card driver.

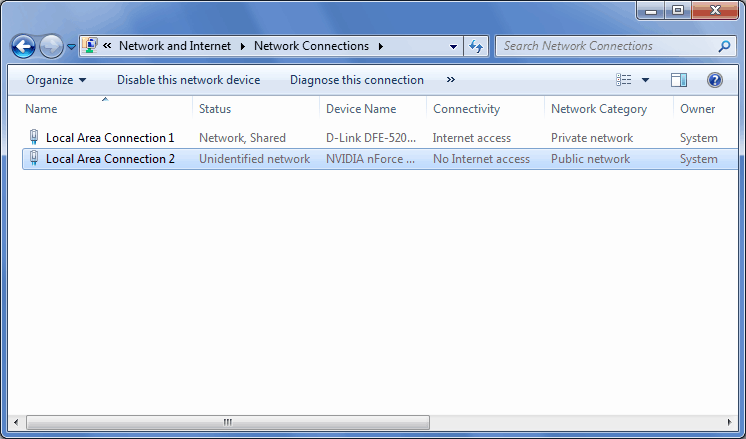

In this example Local Area Connection 1 (NIC1) is a primary card connected to the ADSL modem and Local Area Connection 2 (NIC2) is an extra network card:

Windows Control Panel > Network and Internet > Network and Sharing Center > Change adapter settings (on the left)

Click for full sized image
Full sized image

2. Enable Internet Connection Sharing

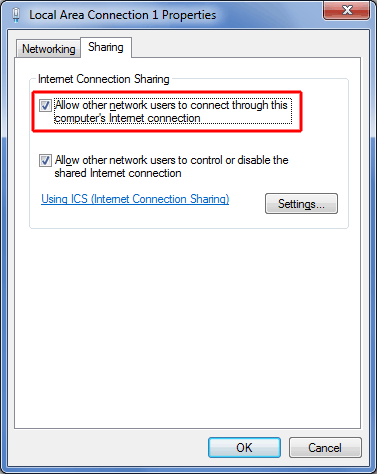

Open your NIC1 properties and enable Internet Connection Sharing.

Click for full sized image
Full sized image

Windows setup the following NIC2 properties:

IP address = 192.168.137.1

Subnet mask = 255.255.255.0

You should not change these values because Internet Connection Sharing may stop working.

2.A. What if you don't like Internet Connection Sharing

If you think that Internet Connection Sharing is not OK for you, you could try some other alternative Windows routing software. We recommend using NAT32 since many our clients use it and it proves to work well with CuteHotspot.

3. Setup Wi-Fi router

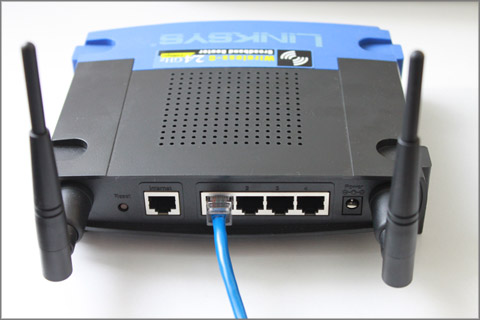

Connect your NIC2 with a cable to your router LAN port (not Internet port):

Click for full sized image
Full sized image

Set the router IP address = 192.168.0.3. Switch the router into Access Point mode. Disable router DHCP.

Read more on how to setup your router model:

Linksys router setup (WRT54GL)

D-Link router setup (DIR-300)

4. Connect Wi-Fi laptop

Connect your Wi-Fi laptop to your wireless network and make sure that you can surf the web.

5. Setup CuteHotspot Server

Install CuteHotspot on your server computer.

Open CuteHotspot main menu > Tools > Internet..., select your NIC2 and enable the Wi-Fi billing option:

Click for full sized image
Full sized image

6. Login Wi-Fi laptop

Try opening any website from your Wi-Fi laptop and get TrueCafe login page. Type your customer/ticket login/password to start a session and continue browsing the web. Try login/password = test/test by default.

Click for full sized image
Full sized image

Click for full sized image
Full sized image
